Wouldn’t it be nice of someone read you a book aloud when you were feeling lazy to read it yourself?

Have you ever wanted to get that Kindle Book into another format, or just copy the text?

Have you ever wanted to get all of your highlights or notes off your Kindle?

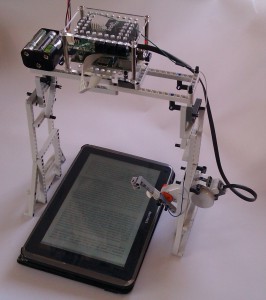

In this project we make an ebook reading robot with the BrickPi.  We use the BrickPi to control the LEGO Mindstorms to turn the pages, a RaspberryPi camera to take pictures of each page, and the Raspberry Pi to convert the text to speech.  The result is an e-book reader that can store text, search for selected text, or read the ebook aloud to you.

Parts Required:

Introduction

If you want to digitize a book, there are mechanisms available.  However, most are too big, too error prone or too expensive for personal use.

The BrickPi Bookreader strikes a balance by using the Raspberry Pi to do the heavy processing and the BrickPi as the interface to the real world, controlling the NXT motors to handle page turning.

To make an automated system that reads a book aloud we need a few tools (some that already exist):
1. A software setup which can take a good picture of a page, perform Optical character recognition(OCR) on the image to convert it to text, and a Text to Speech(TTS) engine that can read the text aloud.
2. A mechanism which can turn each page, automating the system.

For step 1, we have some open source software that does the job very well.  With the Raspberry Pi as the brains of the operation and the official Raspberry Pi camera as its eyes, the size of whole setup is considerably smaller than Google’s.

The second part is a bit tricky. When we started, we assumed there were be some decent projects out there that did the page turning.

So after digging around we found nothing so we set out to build our own.  The biggest challenge of the project was creating a good page turning mechanism.  After some research we found the Google Book Scanner, which turns the pages well but is beyond the scope of almost anyone but a corporation.  We also found Scanbot, which works well but requires a lot of moving parts with a lot of precision timing.   Building the contraption with LEGO’s is naturally easier.

Instead of diving straight into building a mechanism for turning the pages on a physical book, we decided to build a platform which could read from the Kindle app on a Nexus 7.

The reading mechanism- a piece of antistatic foam and a NXT motor

The reading mechanism- a piece of antistatic foam and a NXT motor

Building the Bookreader

Setting up the camera:

The first thing to get our Bookreader up and running is to get the Raspberry Pi camera up and working.  The Raspberry Pi camera packs a lot of punch, there are a lot of options, it’s easy to set up, and the image quality is acceptable for our project.

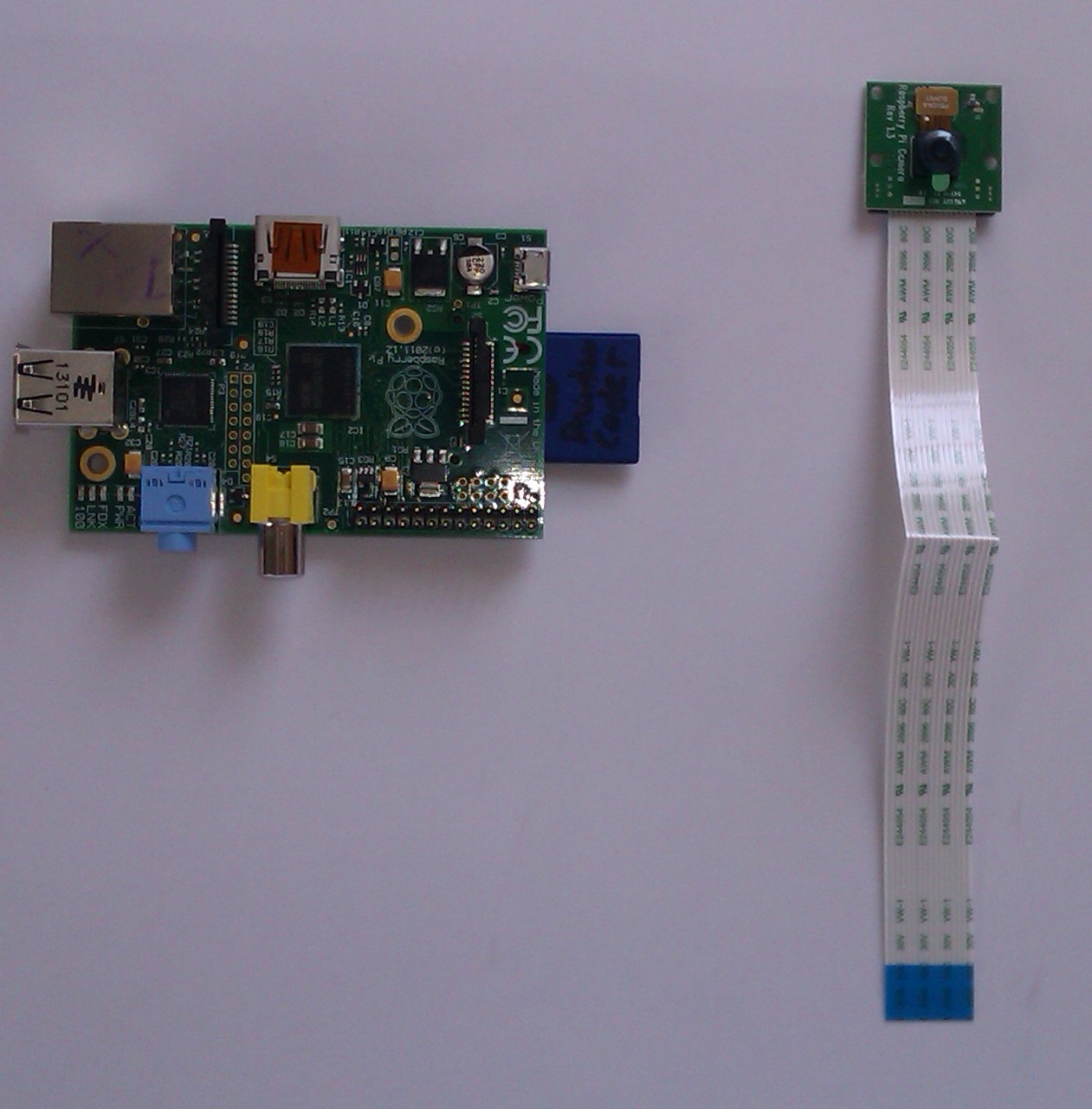

rpi_with_camera

The RaspberryPi and the camera module

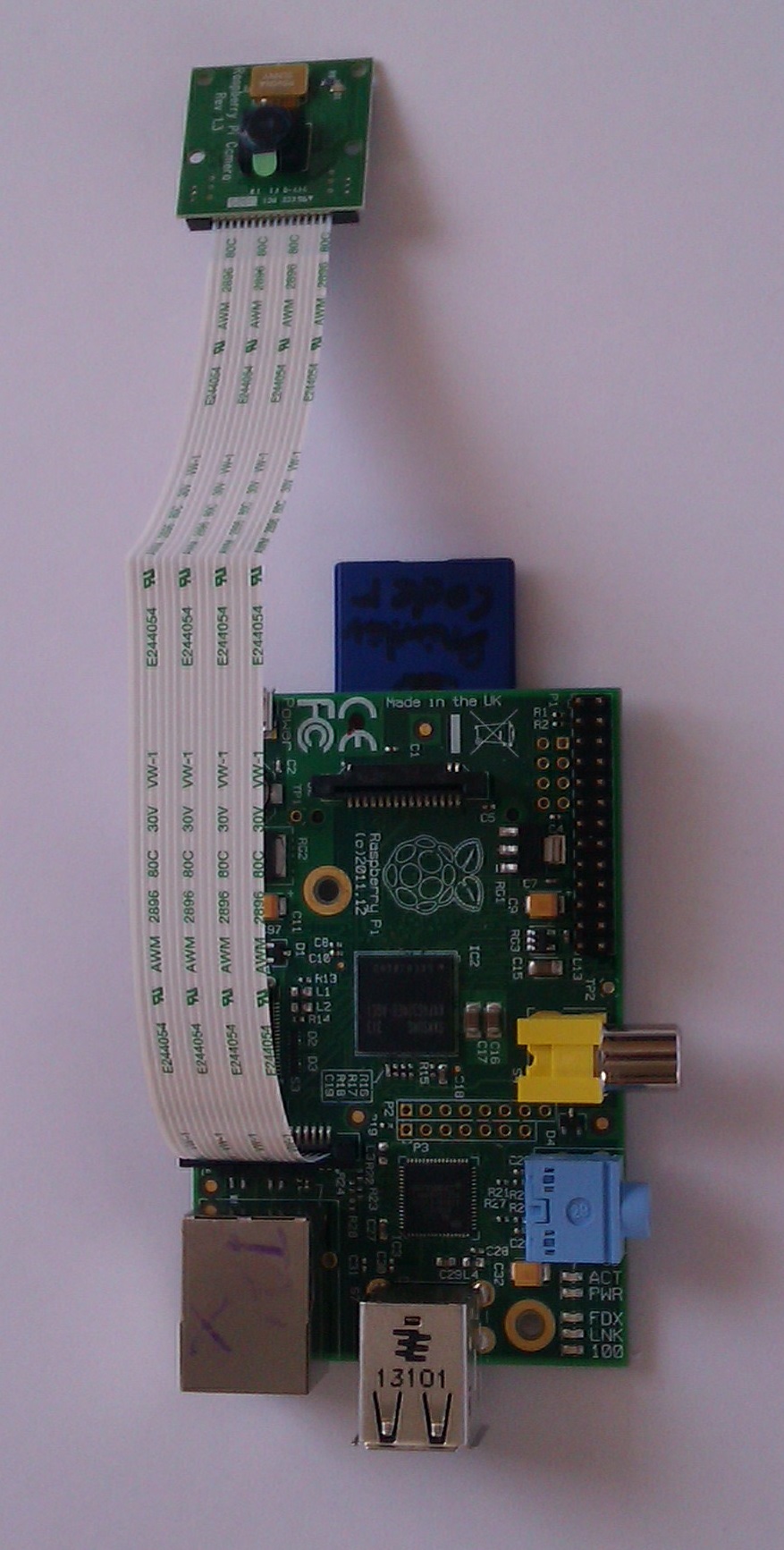

Camera connected to the RPi

After connecting the camera, there is one more thing to do: change the focus of the Raspberry Pi camera. The Raspberry Pi camera comes with its focus fixed at infinity, and since it is a fixed focus camera you have to manually change it.  Here are some helpful links to do focus the camera:

After setting up the camera, take a test image to see that it is properly focused.  In rig we built, we have the camera about 10.5 inches above the tablet (choose a height which is comfortable for you and take a few test images to check if the images are clear and the whole screen of the tablet is captured).

Now fix the camera into it’s adapter next to the Ethernet Jack.  Here is a great guide to setting up the Raspi Camera.  It should be helpful in setting up bot the hardware and software.

After the camera is set up , test it to see if it works:

raspistill -o image.jpg

If the camera is initialized properly is you’ll see a new file image.jpg in your present folder. Open it to see the image.

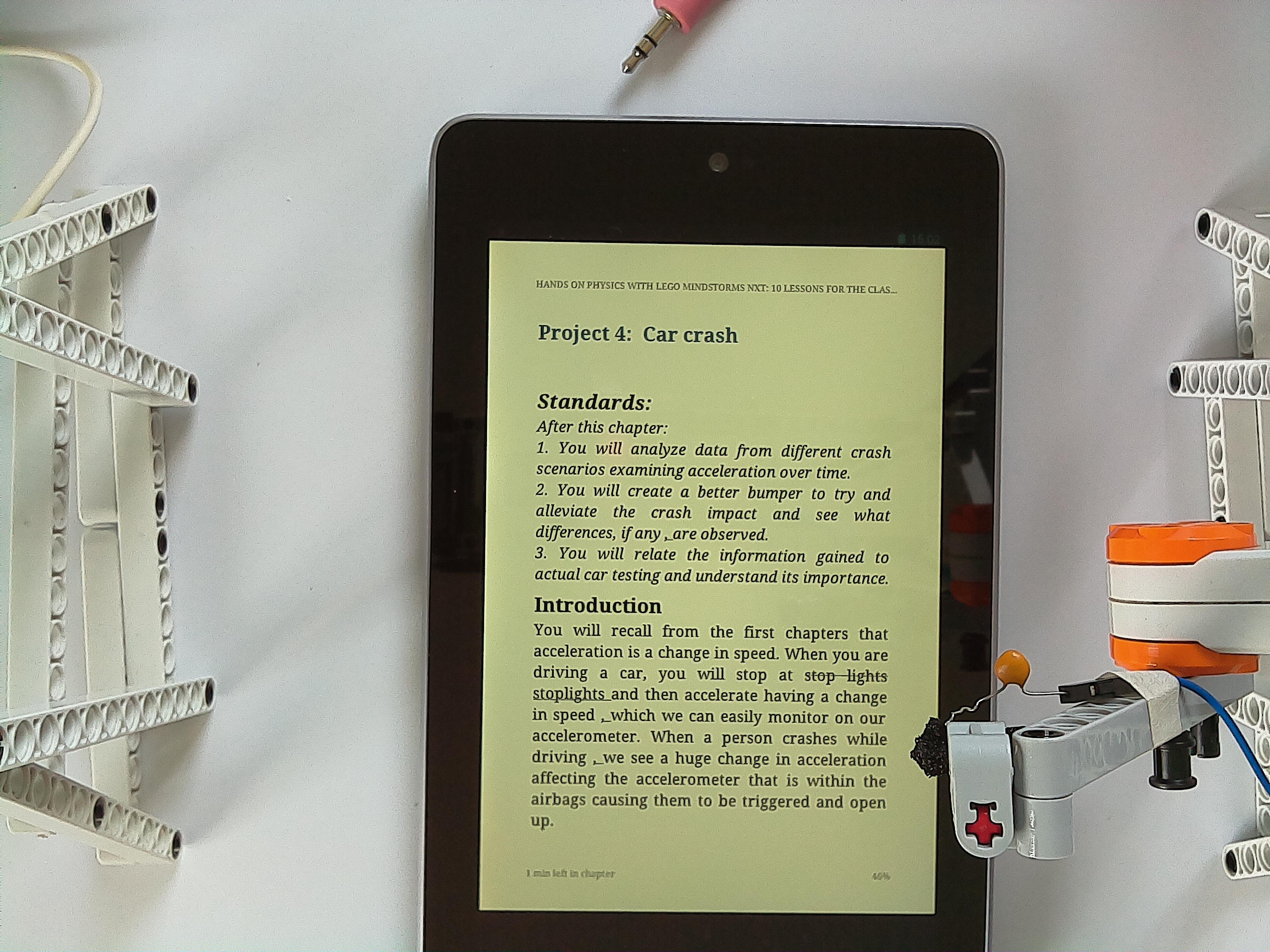

A sample image taken from the RasPi Camera

A sample image taken from the RasPi Camera

Now secure the camera at the desired height and place your tablet or book under it.  Take an image. You may need to readjust the focus of the camera and angle at this point.

Black text on white background works the best so select that from the text options and keep the text size sufficiently large.   The larger the text is, the better results will be from OCR.

Setting up the TTS engine

For the TTS, we are using eSpeak. It works fine for our purposes: the voice is a little robotic, but it does the job. Here is a definitive guide to TTS on RPi.

First test if the audio is working on the Raspberry Pi. Plug a headphone or speakers in the audio jack and run the following command:

aplay /usr/share/sounds/alsa/*

If you are able to hear the sounds, move to the next step!   If not, this tutorial  may help you setup the audio.

Next, install espeak.  Run the following in terminal:

sudo apt-get install espeak

after it successfully installed, run the following command.  (disregard error messages on the terminal if you can hear sound):

espeak “hello”

If you are able to hear “hello” from the headphones or the speakers then move to the next step.

Installing the Optical Character Recognition (OCR) Engine

The OCR engine converts the image file we take of the book into text.  We are using Tesseract OCR Engine.  It runs well on the Raspberry Pi, it does not require an online connection, and it reliably converts images to text.

First, install tesseract:

sudo apt-get install tesseract-ocr

Next, test the OCR engine.

Take a good image of a piece of text, in a Book or from an ebook and run tesseract:

tesseract image.jpg o

where image.jpg is the image which was taken by the raspberry pi camera and o is the file in which the text will be saved(tesseract will make it o.txt so no need to add the extension)

Now, wait a few minutes, the OCR takes a lot of processing power.

When its done processing, open o.txt.  In our experience, the recognition was >90% and works better with larger font size.  If the OCR did not detect anything at all, try rotating the image and running the tesseract again.

Building LEGO Platform and the BrickPi Mount

By taking pictures a few times from various height’s we found that we needed the camera above 10 inches for getting a good and clear image of the text.

Our first build was not elegant: we just looked for LEGO blocks to build a platform on which we can place the Brick Pi casing along with the battery pack and the camera (we cheated with a little bit of tape to fix the camera in the correct position).

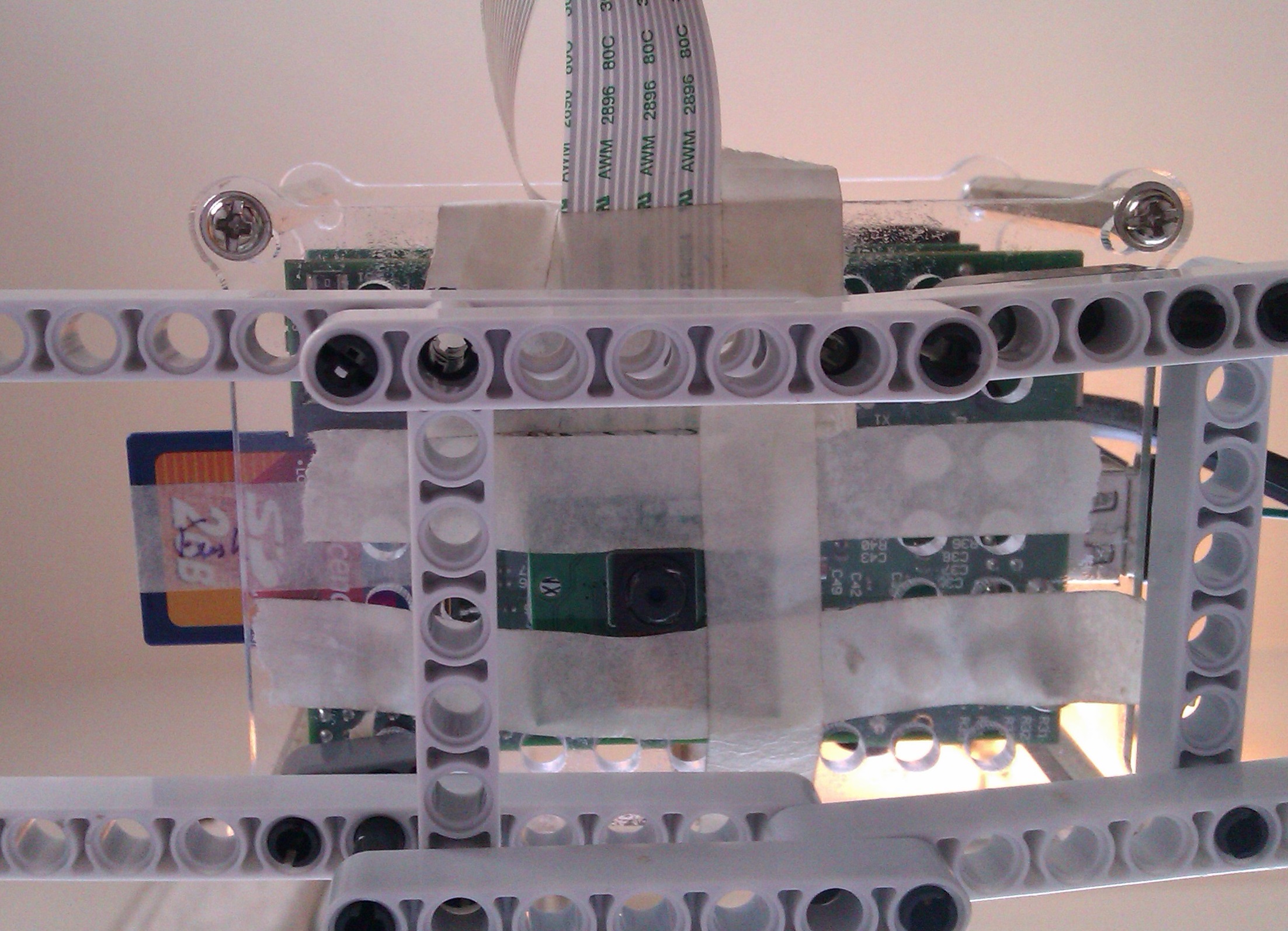

the camera overlooking the tablet(We know that's a lot of tape)

the camera overlooking the tablet(We know that’s a lot of tape)

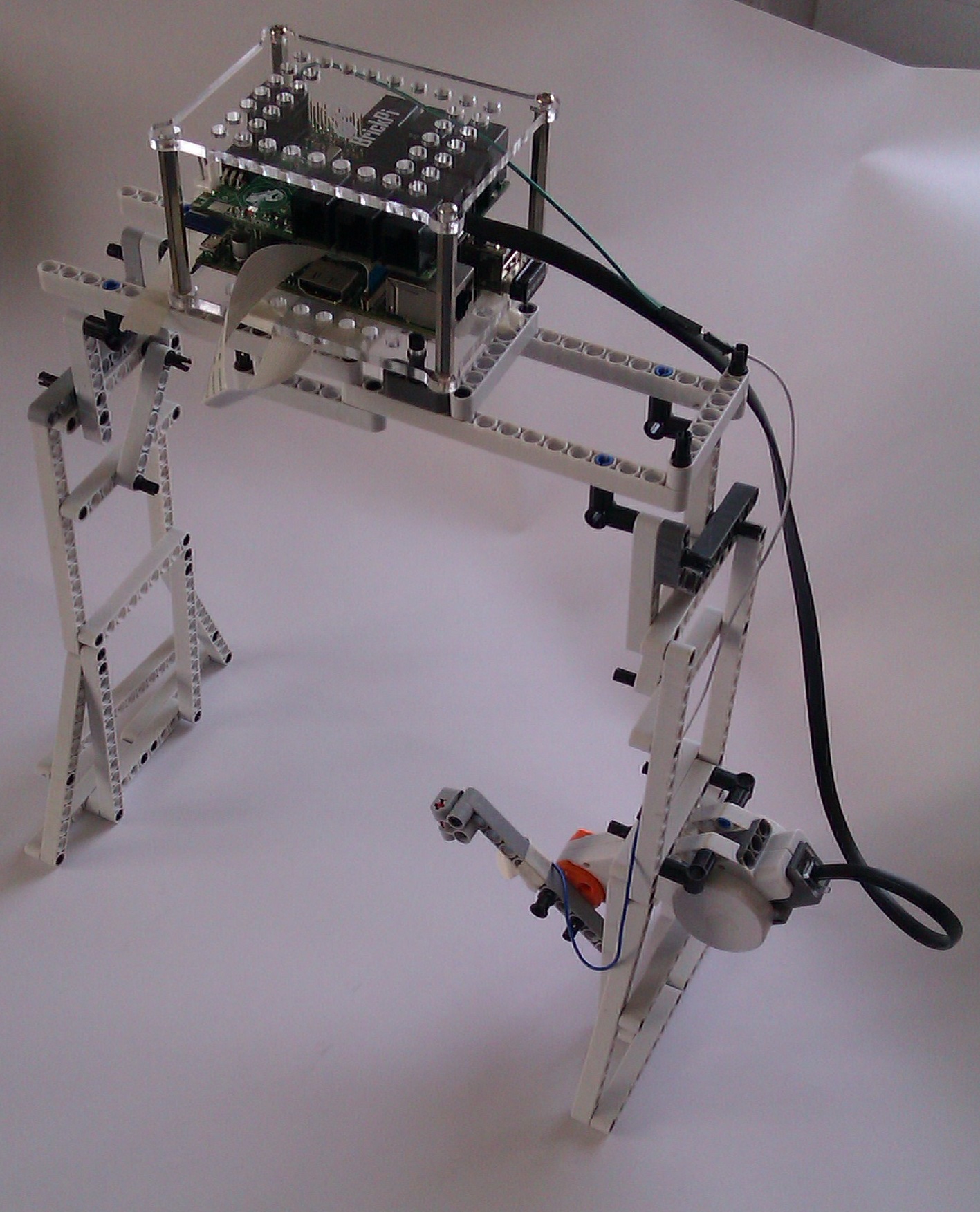

Here’s the basic structure supporting the whole thing:

basic_frame

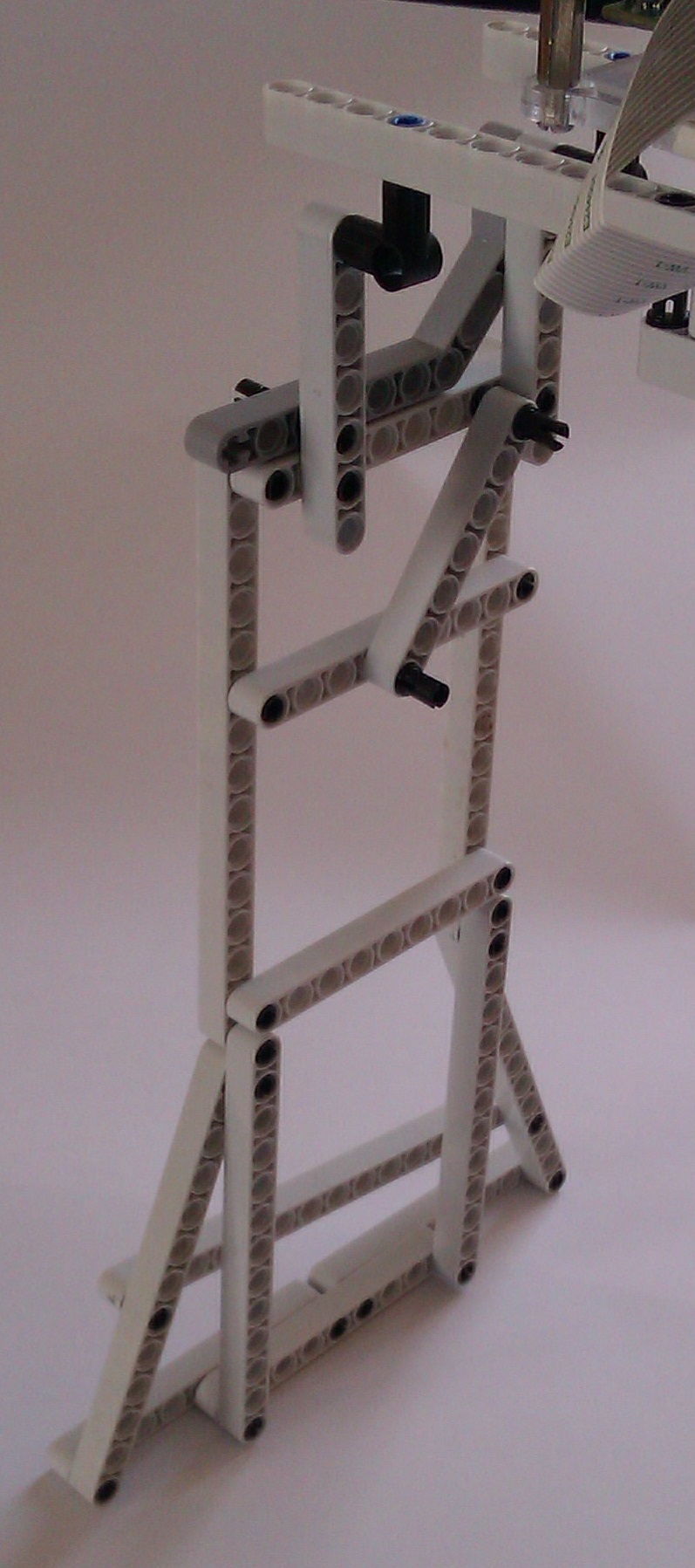

and here’s a look at the supporting leg

support

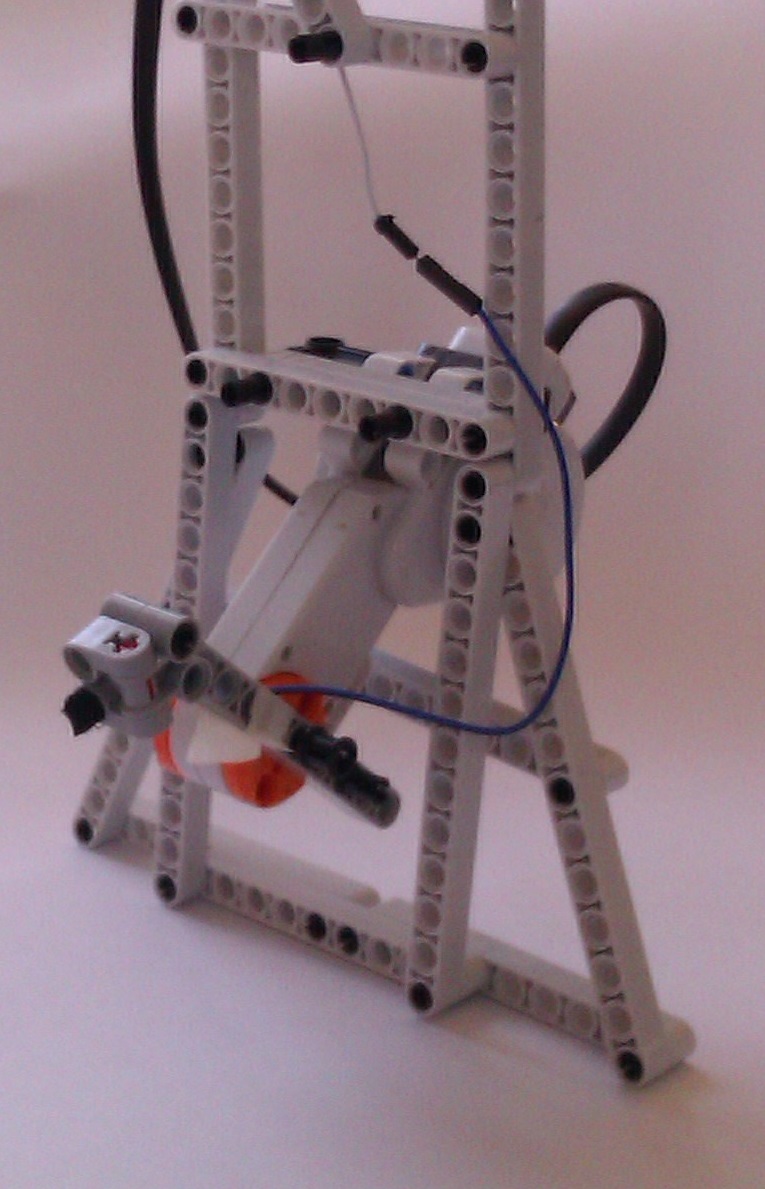

Here’s the support for the robotic arm :

arm_support

Building the robotic arm

Probably the hardest part of this build is to get a robotic arm to turn the pages on a capacitive touch screen.

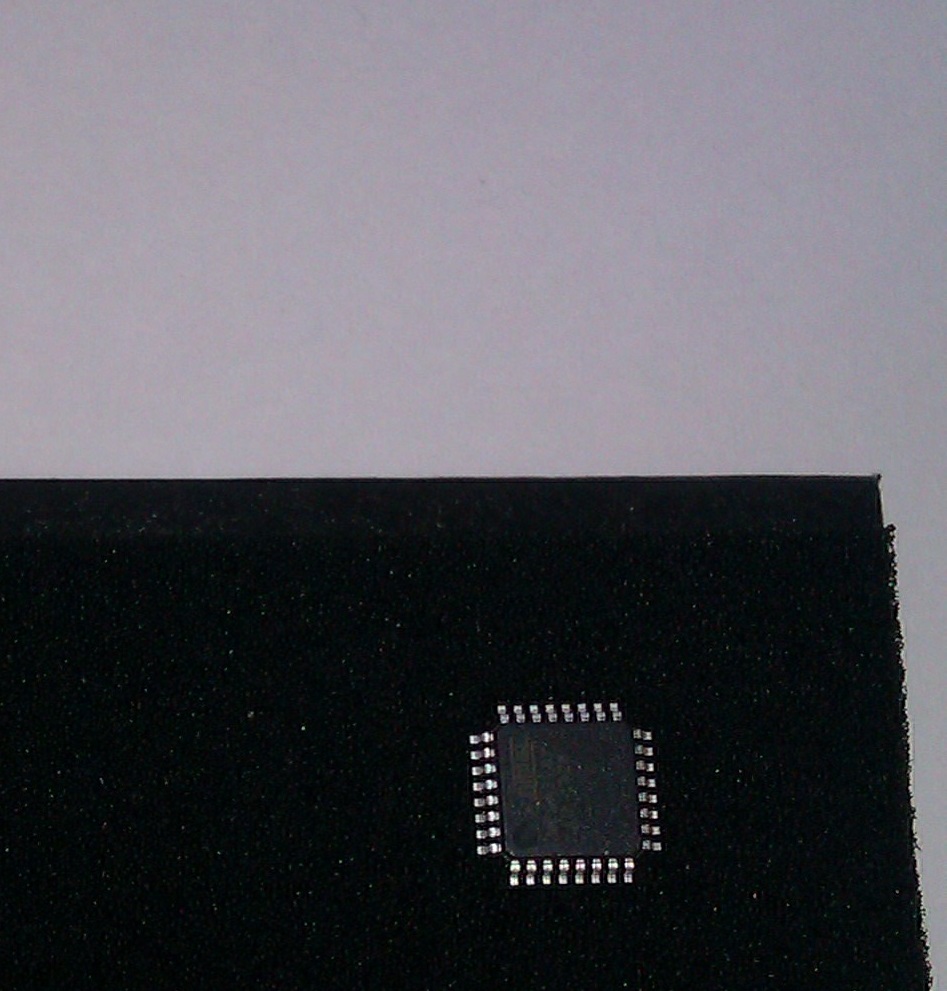

We used the foam thae comes when you get someIC's

We used the foam that comes when you get some IC’s

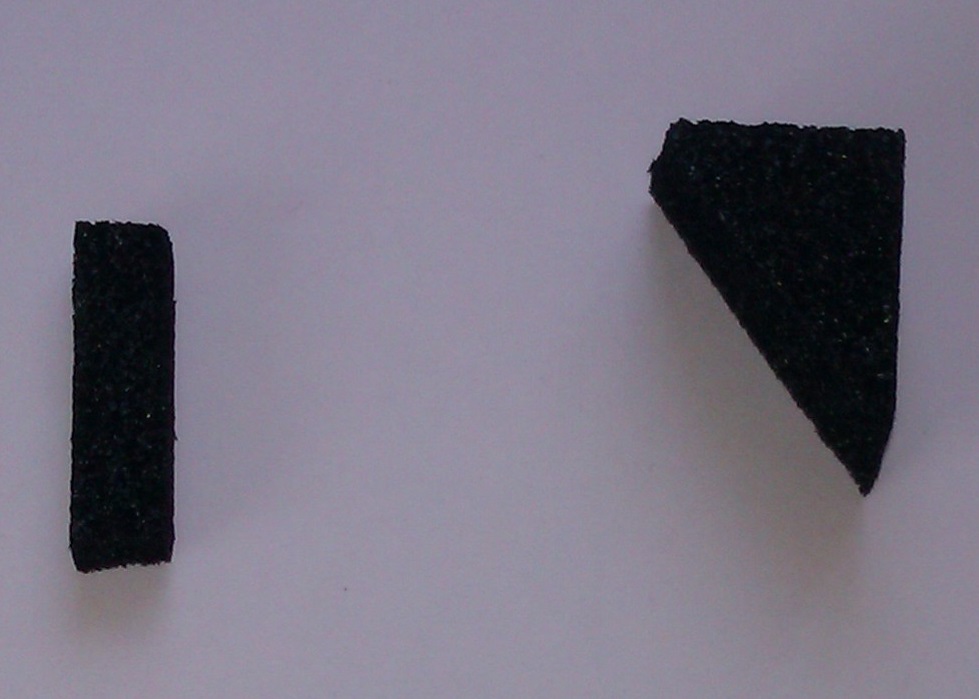

Cut a small piece for using as the stylus

Cut a small piece for using as the stylus

After testing a couple of materials, the best candidate for a capacitive stylus was a bit of antistatic foam (the one that comes with IC’s from Mouser!).  You can also use normal kitchen sponge, but it has to be moist, so just put a few drops of water on it. We found performance improved with a conductive wire with the foam and wrap it around the arm. We also found that it helped to connect a 47 nF capacitor between the foam and the ground on the BrickPi.

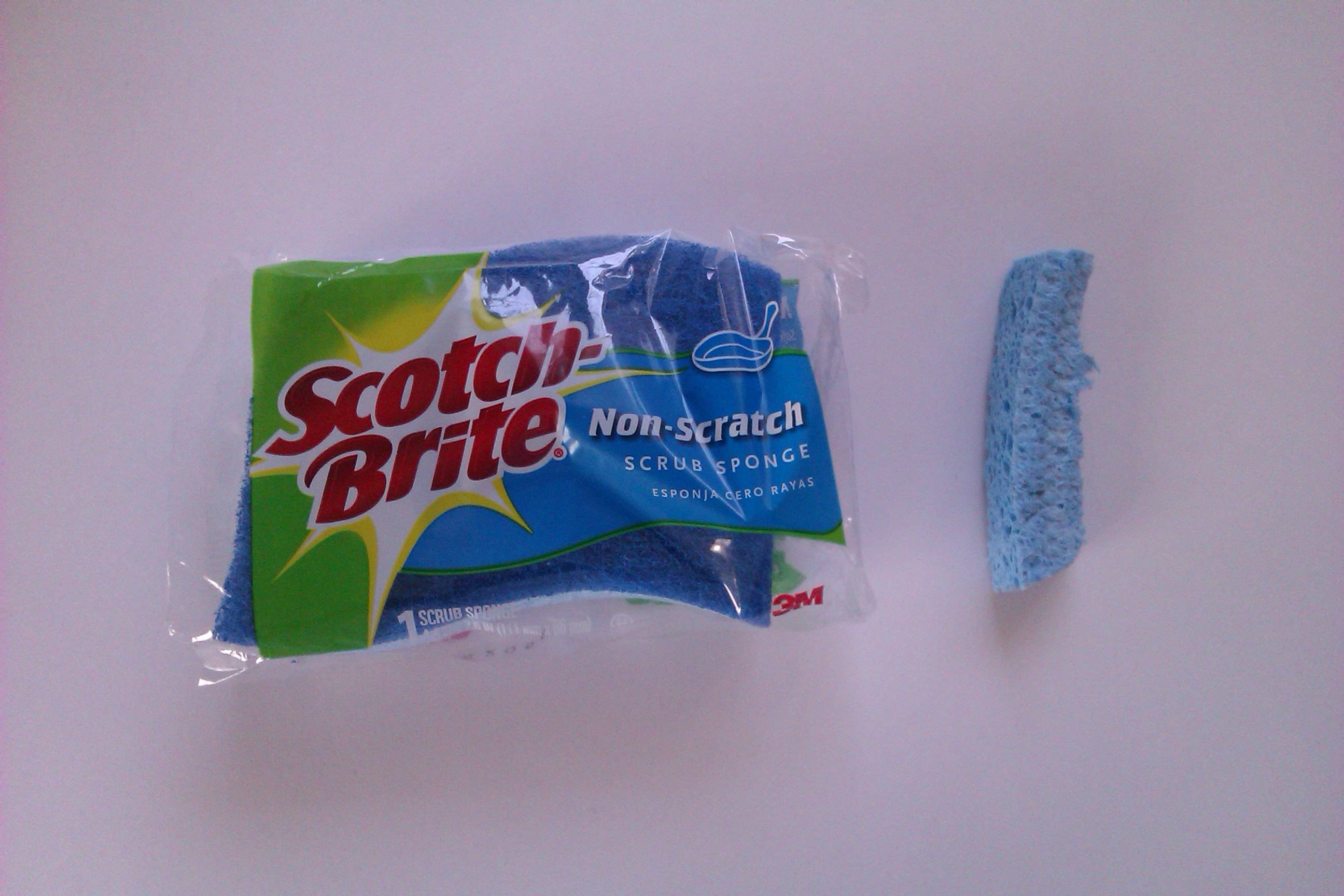

Or you can even use a moist kitchen sponge

Or you can even use a moist kitchen sponge

Attach the piece of foam on an arm stretching out from the motor and connect the capacitor to it.  We also attached a small LEGO block, tilted, which helps making an easy contact with the touch screen.

Place the tablet in a proper position so that the arm is able to move up and down properly and turn the pages on the screen.

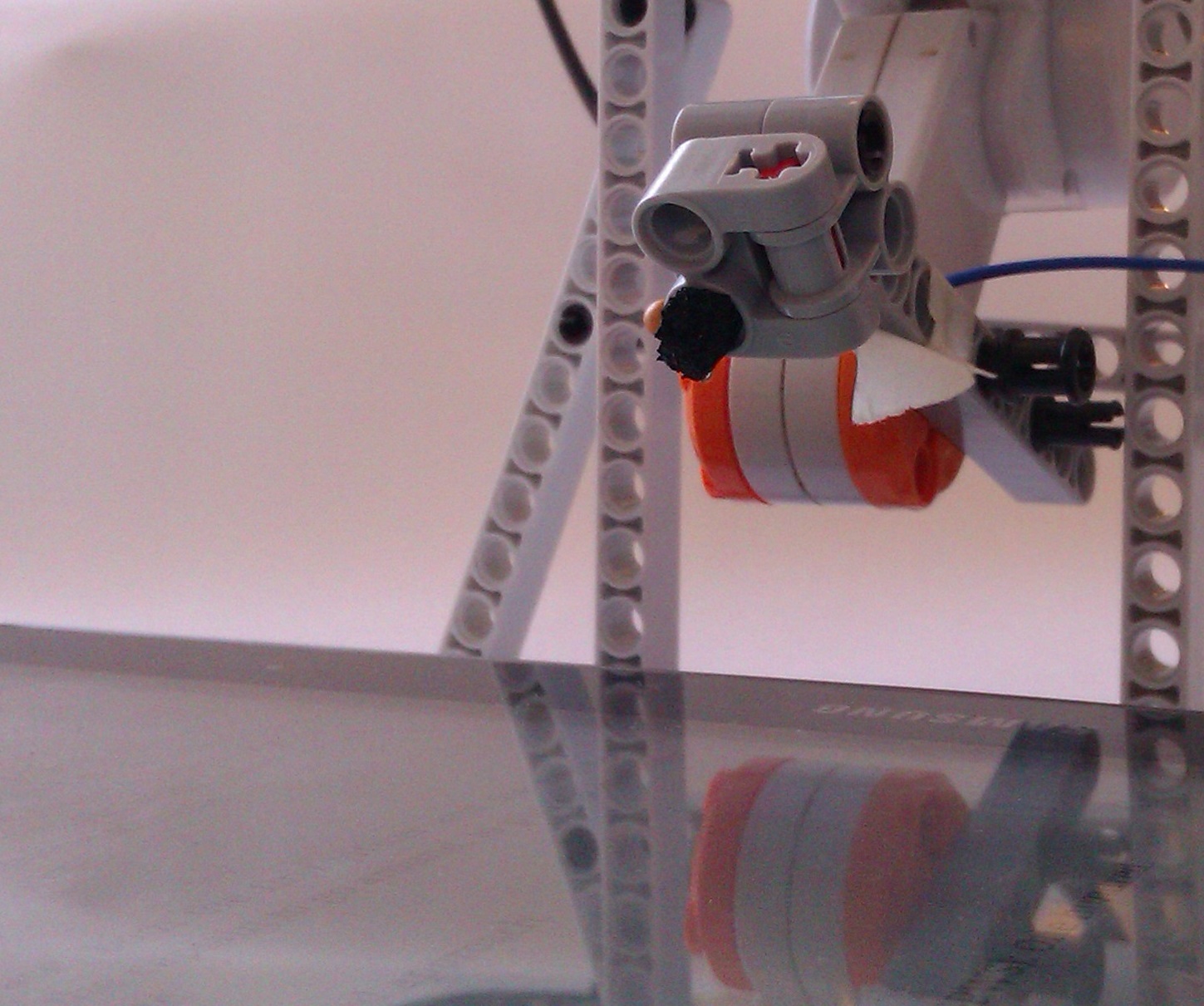

The arm when not touching the screen

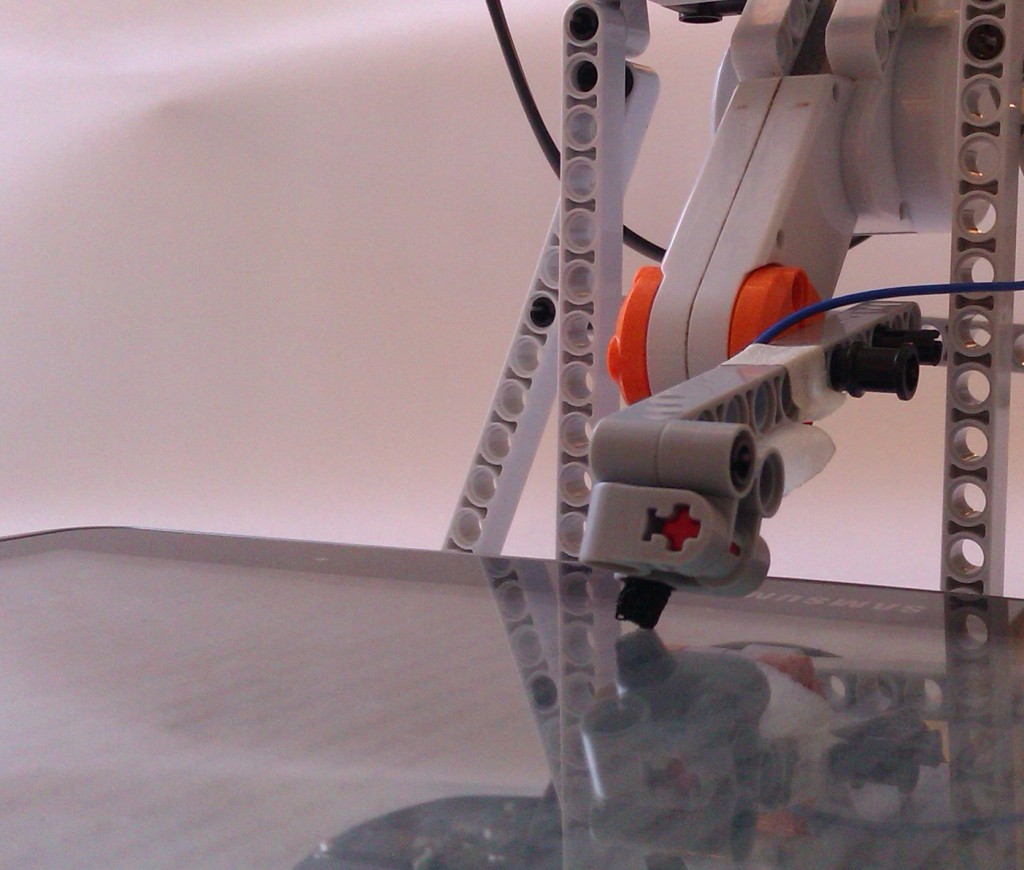

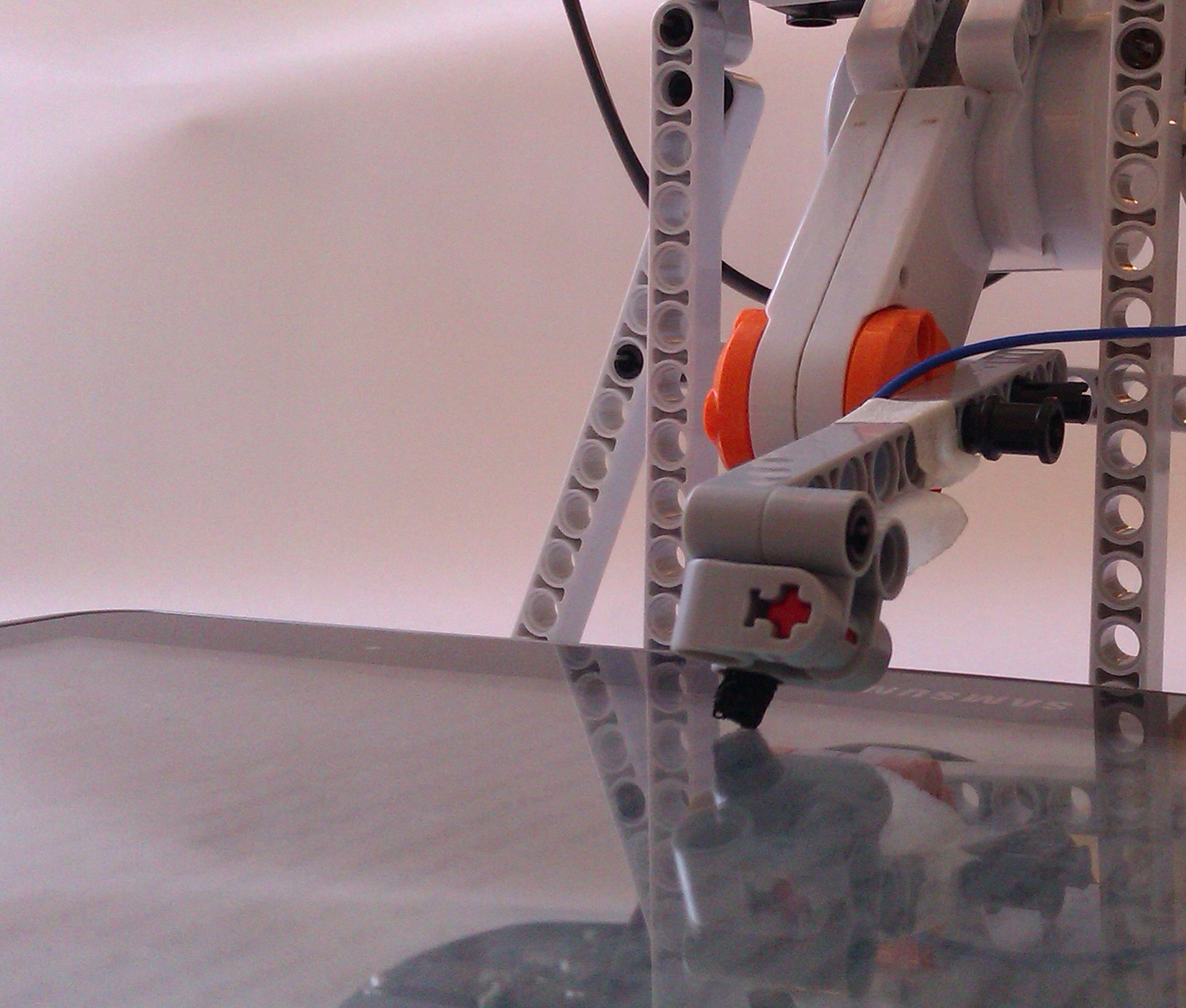

The arm when touching the screen to flip the page

The arm when touching the screen to turn the page

On the Github repo, there is a test code called arm_test.py to help you calibrate the arm for perfect movement. Just connect the motor to Port C of BrickPi and change the values of  ‘t’ and ’sp’, until you get flawless movement.

Putting it all together

With the camera and all software’s working and the platform ready with the motor arm, it now time to bring the Bookreader to life.

Make sure that the camera is calibrated to take focused images of the tablet here with the text clearly visible and that the motor mount is moving correctly and turning the pages.

Download bookreader.py from the BrickPi Github Python Repo and put it in the directory where you have the BrickPi.py library and just run the code to bring it to life.

Future Work

This project could be extended by building a page turning robot.  This would  and use the book reader to read aloud a real book. If you end up building a page turning robot or converting the whole book as an audiobook  or text, or something that you think is great, just post it on the forums, we would love to feature it.
