Raspberry Pi Model B+, Pi2 and the GrovePi

Raspberry Pi Model B+, Pi2 and the GrovePi

The GrovePi+ is compatible with the Raspberry Pi Model B+ and the Raspberry Pi 2 and the Raspberry Pi 3.  Below we have included some pictures to show the Raspberry Pi Model B+ and Raspberry Pi Model 2 with the GrovePi+ attached.

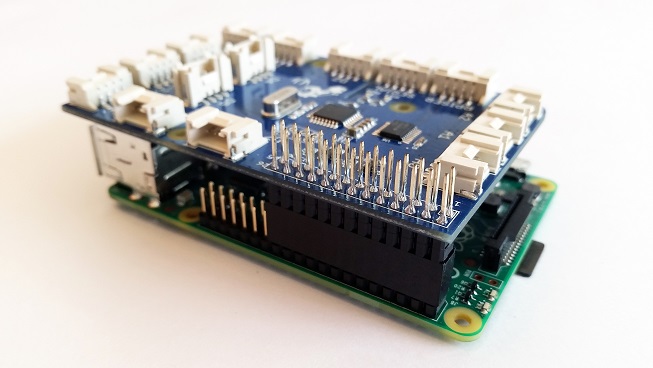

GrovePi and Raspberry PI Side by Side GrovePi_and_Raspberry_Pi_B+ (1)(small)(



You should be careful when mounting the GrovePi+ to the Raspberry Pi Model B+ and Model 2.  Both come with a 40 pin header while the GrovePi+ comes with a 26 pin header.   If you mount it incorrectly, it can cause damage to the GrovePi+ and the Raspberry Pi.

GrovePi and Raspberry Pi Alignment.

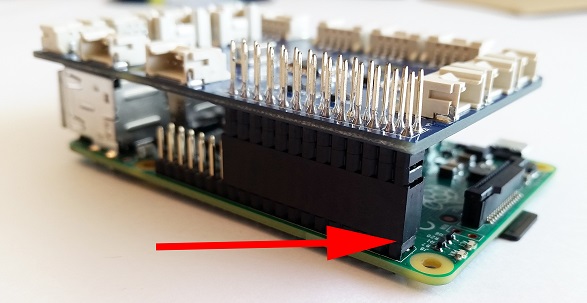

GrovePi and Raspberry Pi Alignment.  See the red arrow.



The pin on the GPIO header on the GrovePi marked as “1”  should go into the Raspberry Pi header pins on the top left corner, far from the USB ports and the micro USB power connector. Refer the pictures below and make sure that you have connected the GrovePi+ properly before powering it on.

GrovePi_and_Raspberry_Pi_B+ (3)(small)

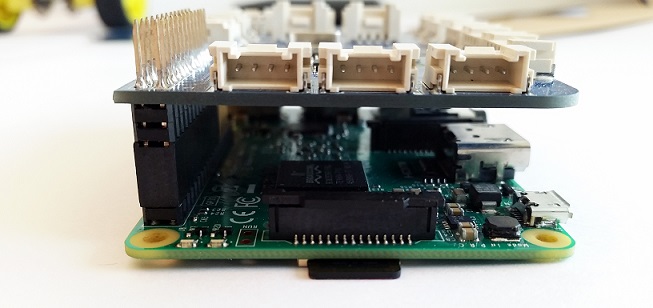

GrovePi_and_Raspberry_Pi_B+ (4)(small)

GrovePi Case Assembly


Have a question or a problem?  Post it on the forums and we’ll help you out.
